ShowerSelect Thermostat HighFlow for concealed installation for 1 function 15761000
| Unieke ref.: | 15761000 |
|---|---|
| Fabrikant: | hansgrohe |
| Product familie: | ShowerSelect |
| Product groep: | Shower thermostat |

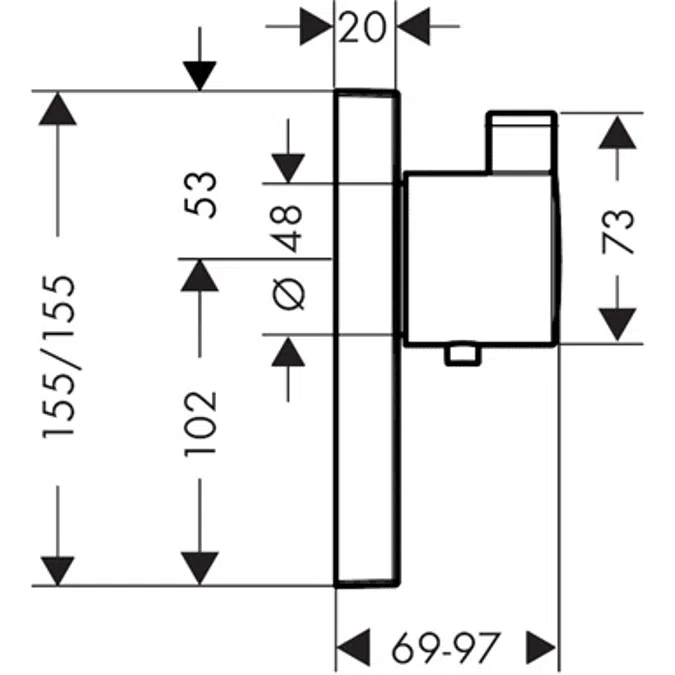

| Breedte (mm): | 155 |
| Hoogte (mm): | 155 |
| Diepte (mm): | 67 |
| Publicatiedatum: | 2018-01-25 |
| Editie nummer: | 1 |
| Type: | Object (enkelvoudig object) |
Downloads
ShowerSelect Thermostat HighFlow for concealed installation for 1 function and additional outlet
· 1 function and 1 additional outlet
· Select push-button on/off control for 1 outlet
· flow rate hand shower connection at 0.3 MPa: 34 l/min
· flow rate upper outlet: 59 l/min
· thermostat cartridge, Select valve
· min. operating pressure: 1 bar
· max. operating pressure: 10 bar
· safety lock at 40° C
· temperature limitation adjustable
· connection type: basic set
· dirt filter included
· Thermostat is delivered with button hand shower
· Select push-button on/off control for 1 outlet
· flow rate hand shower connection at 0.3 MPa: 34 l/min
· flow rate upper outlet: 59 l/min
· thermostat cartridge, Select valve
· min. operating pressure: 1 bar
· max. operating pressure: 10 bar
· safety lock at 40° C
· temperature limitation adjustable
· connection type: basic set
· dirt filter included
· Thermostat is delivered with button hand shower
| Product url: | https://www.hansgrohe.com/articledetail--15761000 |
|---|---|
| Installatie instructies: | https://www.hansgrohe.com/articledetail--15761000 |
| COBie Product Data Sheet: | |
| Product classificatie: | |
| Technische beschrijving: | https://www.hansgrohe.com/articledetail--15761000 |
| Instructie video: | |
| GTIN code: | 4011097719863 |
De QR code bevat een statische URL en zal je terugbrengen naar deze pagina wanneer hij gescand wordt door een apparaat als Iphone of smartphone.
https://bimobject.com/nl/hansgrohe/product/15761000
| Primair materiaal: | Chrome |
|---|---|
| Secundair materiaal: | |
| Ontworpen in : | Germany |
| Vervaardigd in : | Germany |
| Netto gewicht (kg): | 1.84 |
| BIMobject categorie: | Sanitary - Taps & Mixers |
|---|---|
| IFC classificatie: | Sanitary Terminal |
| UNSPSC naam: | Sanitary ware |
| UNSPSC code: | 301815 |
| Uniclass 1.4 Code : | L725111 |
| Uniclass 1.4 Beschrijving: | Mixer taps |
| Uniclass 2.0 Code : | PR-31-75 |
| Uniclass 2.0 Beschrijving: | Sanitary Accessories |
| Uniclass 2015 Code : | Pr_40_20_87_09 |
| Uniclass 2015 Beschrijving: | Bath taps |
| NBS Reference Code : | 31-75 |
| NBS Reference Beschrijving: | Sanitary Accessories |
| CSI MasterFormat 2014 Code: | 22 41 39 |
| CSI MasterFormat 2014 Title: | Residential Faucets, Supplies, and Trim |
| OmniClass nummer: | 23-31 11 00 |
| OmniClass Titel: | Faucets |
| CSI UniFormat II Code: | D2010 |
| CSI UniFormat II Title: | Plumbing Fixtures |
